Description

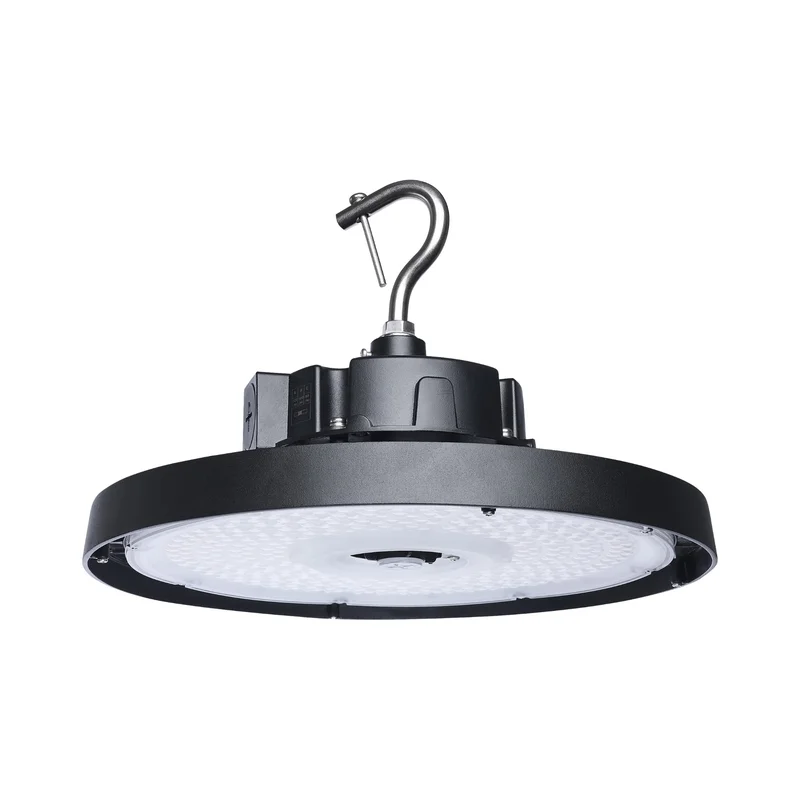

Satco|Nuvo Beam Selectable LED Round High Bay — 120W & 240W, Black & White, Selectable CCT, 120-347V
The Satco|Nuvo Beam Selectable LED Round High Bay is a rugged, high-performance UFO-style LED high bay engineered to deliver precise, adaptable illumination across warehouses, factories, gymnasiums, and commercial facilities. Available in a 120W (19,837lm) and a 240W (37,938lm) configuration, and in both Black and White finishes, all models feature the standout beam selectable technology that physically adjusts light distribution to 60°, 80°, or 100° on-site. Field-selectable wattage, selectable 3000K/4000K/5000K CCT, a 0-10V dimming driver, 6kV surge protection, an integrated sensor port, and a NEMA 4X / IP65 rating are standard across all four configurations.
Satco|Nuvo Round High Bay Features
- Beam Selectable Technology: Physically adjustable beam distribution — set to 60° (focused/narrow), 80° (intermediate), or 100° (wide area) during installation to optimize coverage for any ceiling height or floor layout.
- Two Wattage Tiers: Choose 120W (19,837lm) or 240W (37,938lm) to match mounting height and illumination targets.
- Field-Selectable Wattage: 120W model: 120W/100W/80W; 240W model: 240W/200W/150W — set on-site to fine-tune energy consumption without rewiring.
- Two Finish Options: Available in Black (65-1520 / 65-1521) and White (65-1522 / 65-1523) to complement any facility aesthetic.
- Selectable CCT: Field-adjustable 3000K, 4000K, and 5000K color temperatures via on-fixture switch.
- High Efficacy: Up to 165 LPW (120W model) and 158 LPW (240W model) with 80 CRI across all configurations.
- NEMA 4X / IP65 Rated: Complete protection against dust ingress and wet environments — suitable for demanding industrial and outdoor-adjacent applications.
- IK08 Impact-Resistant Lens: Durable polycarbonate lens protects LED components while ensuring uniform light distribution.
- 0-10V Continuous Dimming: Full dimming interface for compatibility with automated building controls and energy management systems.
- Integrated Sensor Port: Ready for immediate occupancy or daylight harvesting sensor integration — no additional wiring required.
- Universal Voltage: 120-347V input compatible with standard commercial and higher-voltage industrial systems.
- 6kV Surge Protection: Guards internal components against severe power transients on industrial circuits.
- 50,000-Hour Lifespan: L70-rated LED life with a 5-year warranty minimizes maintenance in high-bay installations.
- Integrated Locking Hook: Included for secure suspended mounting — no additional hardware required.
Beam Selectable Technology
The defining feature of this family is the physically adjustable beam distribution — set during installation to match the exact ceiling height and floor layout of your facility:
- 60° (Narrow/Focused): Concentrated illumination for high-mounting heights, narrow aisles, and targeted task areas requiring maximum foot-candle intensity.
- 80° (Intermediate): Balanced distribution for mixed-use industrial spaces and moderate-width work areas.
- 100° (Wide): Maximum spread for open floor plans, gymnasiums, retail floors, and large commercial bays.
Wattage & Color Options
Select the wattage tier and finish that match your facility requirements:
- 120W — Black (65-1520): 19,837lm at 165 LPW | 100W: ~16,500lm | 80W: 12,501lm — 11.81” × 11.81” × 7.84”, 5.07 lbs
- 120W — White (65-1522): 19,837lm at 165 LPW | 100W: ~16,500lm | 80W: 12,501lm — 11.81” × 11.81” × 7.84”, 5.07 lbs
- 240W — Black (65-1521): 37,938lm at 158 LPW | 200W: ~31,600lm | 150W: ~23,700lm — 14.17” × 14.17” × 7.84”, 6.83 lbs
- 240W — White (65-1523): 37,938lm at 158 LPW | 200W: ~31,600lm | 150W: ~23,700lm — 14.17” × 14.17” × 7.84”, 6.83 lbs
CCT Options: All models offer 3000K (warm white), 4000K (neutral white), and 5000K (daylight) — selectable on-site to match task lighting requirements or facility standards.
Typical Applications
- Warehouses and distribution centers — narrow aisle or wide bay configurations.
- Manufacturing floors and industrial production areas.
- Gymnasiums and large recreational facilities.
- Retail stores and commercial showrooms.
- Factories and assembly areas requiring precise beam control.
- Wet or demanding environments requiring NEMA 4X protection.
Performance & Light Output
Both wattage tiers deliver high-efficacy output — up to 165 LPW (120W) and 158 LPW (240W) — with 80 CRI and physically adjustable 60°/80°/100° beam distributions for precise coverage optimization. The IK08 polycarbonate lens ensures uniform light distribution while protecting internal LED components. The 50,000-hour L70 lifespan dramatically reduces re-lamping and maintenance costs versus legacy metal halide UFO high bays.
Electrical & Controls
Each model is powered by a robust driver operating on 120-347V AC, ensuring compatibility across standard commercial and higher-voltage industrial power systems. All configurations include 0-10V continuous dimming, a 6kV surge protector, and an integrated sensor port for immediate occupancy or daylight harvesting sensor integration without additional wiring.
Construction & Durability
The die-cast aluminum housing is available in Black or White and carries a NEMA 4X / IP65 rating for complete protection against dust ingress and wet environments. The IK08-rated polycarbonate lens resists physical impact while maintaining uniform light distribution. The thermally efficient design operates reliably in extreme ambient temperatures from -40°C to 50°C (-40°F to 122°F).
Installation & Mounting
All models support suspended mounting and include an integrated locking hook for secure, rapid deployment in high-ceiling environments — no additional hardware required. The beam distribution is physically adjusted during installation and locks securely at the selected 60°, 80°, or 100° position.
What’s Included
- Satco|Nuvo Beam Selectable LED Round High Bay (wattage and color selected above)
- Integrated Locking Hook
