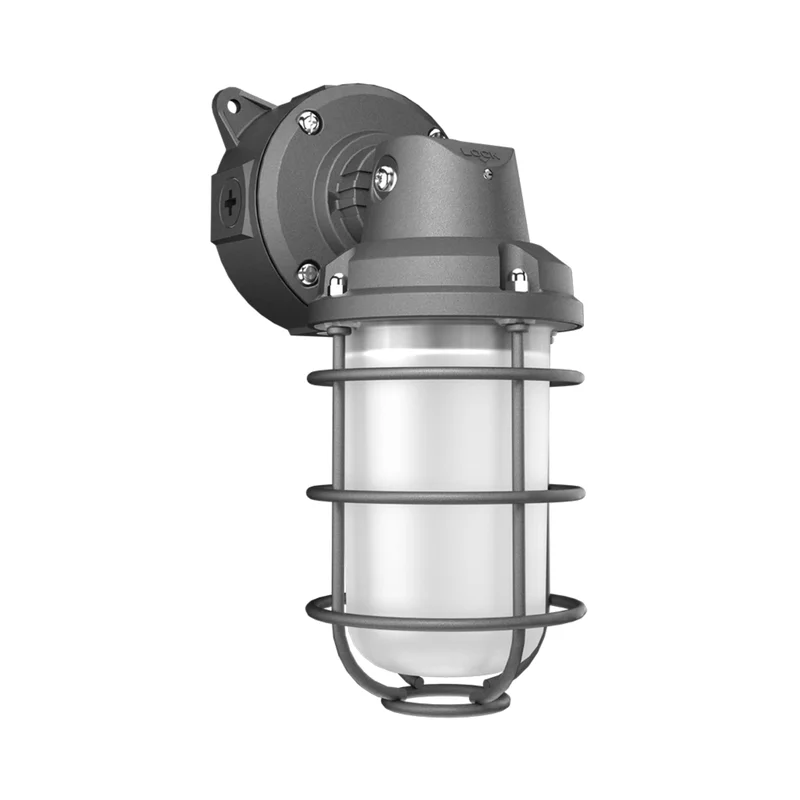

RAB VXRGB26 Field-Adjustable LED Vaporproof Fixture — IP65 Wet Location
The RAB VXRGB26 is a field-adjustable LED vaporproof fixture designed for wet location applications requiring sealed construction and color flexibility. It features an IP65 rating and is suitable for wet locations. This fixture delivers up to 3,151 lumens with selectable wattage (26W / 18W / 12W) and selectable output modes (RGB or 5000K) on a universal 120–277V driver. Cold weather starting is rated to -40°F (-40°C) with maximum ambient operation up to 113°F (45°C). A built-in ON/OFF daylight sensor is included for automatic control (factory default off).
Key Features
- Selectable Wattage: 26W / 18W / 12W (factory default 18W)
- Selectable Output Mode: RGB or 5000K (factory default 5000K)
- Maximum Output: Up to 3,151 lumens
- Voltage: 120–277V
- Photocell: Built-in ON/OFF daylight sensor (factory default off)
- IP Rating: IP65
- Wet Location: Suitable for wet locations
- Operating Temperature: -40°F to 113°F (-40°C to 45°C)
- BUG Rating: 26W: B1 U3 G2 / 18W: B1 U3 G1 / 12W: B1 U3 G1
- Rated Life: 100,000 hours (L70)
- Surge Protection: 4kV
Typical Applications
- Exterior walkways
- Entryways and egress areas
- Loading docks
- Utility corridors
- Maintenance areas
- Wet environment industrial spaces
Performance & Light Output
Delivered output ranges from 268 to 3,151 lumens depending on selected wattage and mode. Efficacy ranges from 22.6 to 121.5 lm/W. Color accuracy is 84 CRI. Rated lifespan is 100,000 hours (L70) based on LM-80 and TM-21 calculations.
Electrical & Controls
Operates on 120–277V, 50/60Hz constant current driver (Class 1). Input power ranges from 9 to 27.9W depending on setting. Includes a built-in ON/OFF daylight sensor. Surge protection is rated 4kV.
Construction & Durability
Die-cast aluminum housing with polycarbonate lens and polycarbonate reflector. High-temperature silicone gaskets support sealed performance. Rated IP65 for dust and water resistance and suitable for wet locations. Cold weather starting to -40°F (-40°C) and maximum ambient operation up to 113°F (45°C).
Installation & Mounting
Designed with three 1/2″ NPS conduit entry points for sealed conduit routing and flexible installation.
Included
- LED fixture
- Mounting conduit arm
- Integrated protective grill
