Description

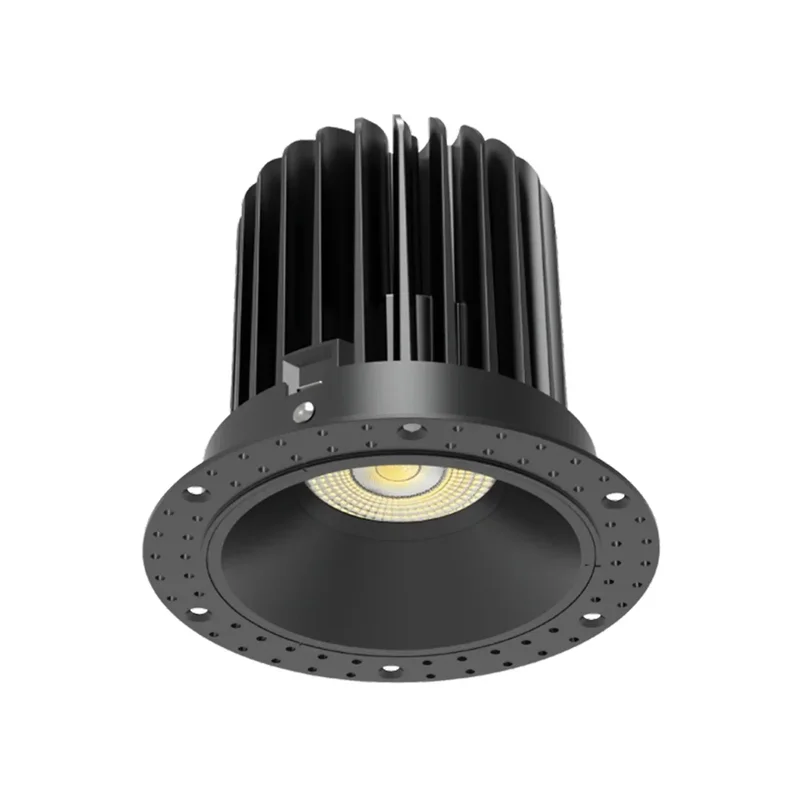

RAB R4TLB 4 in. Trimless Downlight — 20W / Selectable CCT
The RAB R4TLB is a 4-inch trimless downlight delivering up to 1,900 lumens using 20W. This fixture offers selectable color temperatures ranging from 2700K to 5000K, making it versatile for various lighting needs. Its trimless design adds a modern touch to any space.
Key Features
- Wattage: 20W
- Lumens: 1,900 lm
- Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
- CRI: 90
- Dimming: TRIAC/ELV dimmable down to 10%
- Lifespan: 50,000 hours
- Voltage: 120V
- Beam Angle: 38°
- Compliance: Energy Star, Title 24 JA8, RoHS
- Environment: Suitable for wet locations
Construction & Aesthetics
The downlight features a smooth, trimless design with a black finish, enhancing its modern appeal. It includes a clear polycarbonate lens for even light distribution. The fixture is constructed from durable metal, ensuring longevity.
Electrical & Installation
This fixture operates on 120V and includes a constant current driver. It is designed for recessed mounting and does not require a housing or J-box. Compatible with emergency driver accessories for added functionality.
Light Output & Performance
With a high efficacy of up to 99 lm/W, this downlight provides excellent light quality with a CRI of 90. The field-adjustable CCT allows for precise lighting customization.
Typical Applications
- Residential living areas
- Commercial offices
- Retail spaces
- Hospitality environments
- Outdoor covered areas
