Description

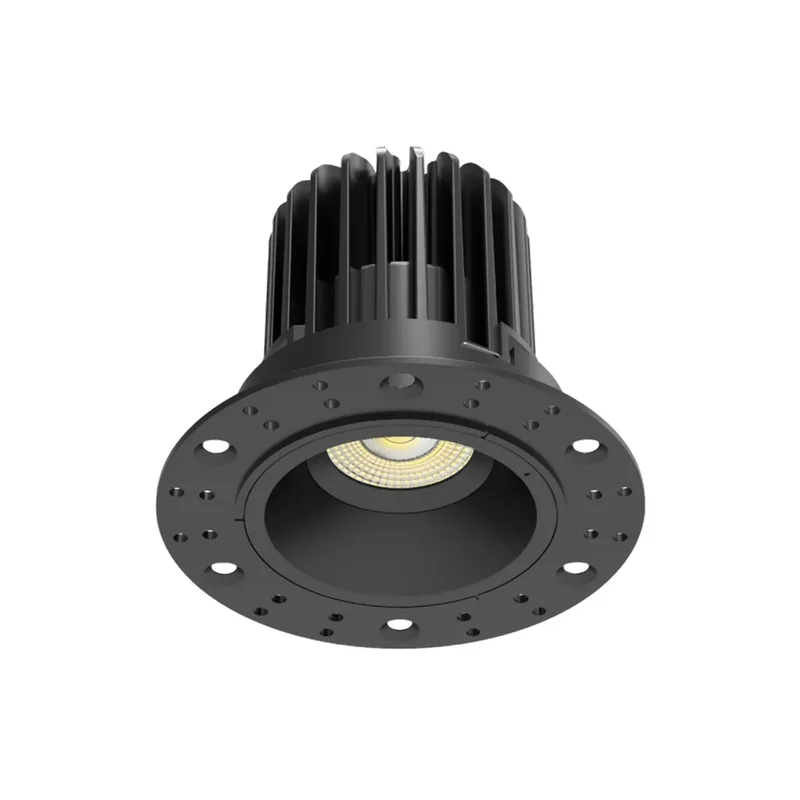

RAB R2TLB 2 in. Trimless Downlight — 9W / Selectable CCT
The RAB R2TLB is a 2-inch trimless downlight delivering 600 lumens using 9W. This fixture offers a selectable CCT range from 2700K to 5000K, making it ideal for various lighting needs. Its high-end trimless design ensures a seamless look in any space.
Key Features
- Wattage: 9W
- Lumens: 600 lm
- Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
- Voltage: 120V
- Dimming: TRIAC/ELV dimmable down to 10%
- Beam Angle: 38°
- CRI: 90
- Lifespan: 50,000 hours
- Compliance: Title 24 JA8, RoHS Compliant
- Environment: Wet Rated
Construction & Aesthetics
The R2TLB features a smooth trimless design with a black finish, providing a modern look. Its polycarbonate lens ensures even light distribution, and the fixture is suitable for both indoor and outdoor environments.
Electrical & Installation
This downlight operates on 120V and includes a constant current driver. It is designed for recessed mounting without the need for a housing or J-box, simplifying installation. Compatible with emergency drivers for added functionality.
Light Output & Performance
With a high color accuracy of 90 CRI and a beam angle of 38°, the R2TLB ensures excellent light quality and performance. The fixture’s LED lifespan is rated at 50,000 hours.
Typical Applications
- Residential lighting
- Commercial spaces
- Hospitality environments
- Retail settings
- Outdoor patios
