Description

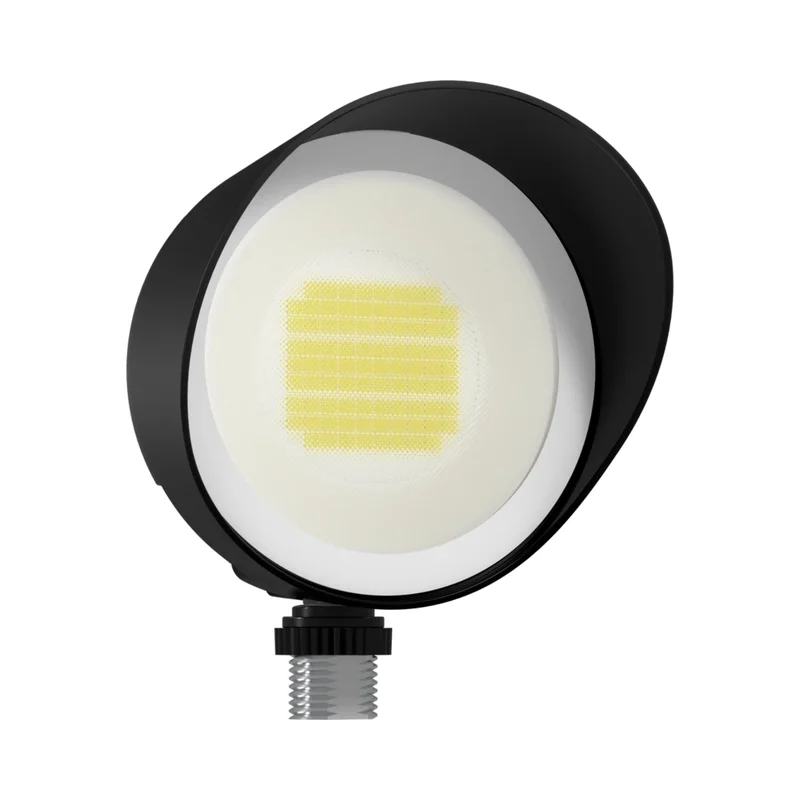

RAB Bullet Field Adjustable Flood Light — 12W Configuration
The RAB BULLET12B is a versatile flood light offering 12W power, delivering up to 1324 lumens with a selectable color temperature of 3000K, 4000K, and 5000K. It operates on a 120-277V input, making it suitable for various applications. This flood light is IP65 rated, ensuring durability in wet locations.
Key Features
- Field Adjustability: Offers adjustable wattage settings of 12W, 9W, and 6W, with a factory default of 12W.
- Selectable CCT: Choose from 3000K, 4000K, and 5000K color temperatures, with a factory default of 4000K.
- Driver: Constant current driver with TRIAC dimming capability down to 10%.
- Surge Protection: Equipped with 1 kV surge protection for enhanced safety.
- Construction: Features a die-cast aluminum housing and a glass lens for robust performance.
- Optics: NEMA 6H x 6V beam spread for wide coverage.
- Compliance: UL listed for wet locations and compliant with the Trade Agreements Act.
- Green Technology: Mercury and UV free, with RoHS-compliant components.
- Warranty: Backed by a 5-year limited warranty covering light output and driver performance.
Typical Applications
- Building facades
- Landscape lighting
- Security lighting
- Signage illumination
- Pathway lighting
Performance & Light Output
The flood light provides a luminous efficacy of 100.2-116.4 lm/W, with a CRI of 82-85, ensuring high-quality light output. It has a long lifespan of 100,000 hours based on IES LM-80 results.
Electrical & Controls
Operates on 120V with a constant current driver. It supports TRIAC dimming down to 10% and has a power factor of 99% at 120V. Surge protection is rated at 1 kV.
Construction & Durability
Constructed with a die-cast aluminum housing and a glass lens, the fixture is IP65 rated for protection against dust and water. It operates in temperatures ranging from -40°F to 104°F.
Installation & Mounting
Includes a heavy-duty mounting arm with an ‘O’ ring seal and stainless steel screws for secure installation.
What’s Included
- Flood light fixture
- Mounting arm
- Installation hardware
