RAB ARCTAPE COB LED Tape Light – 32ft Reel, Static White & Warm-to-Dim, 24V

Description

Overview

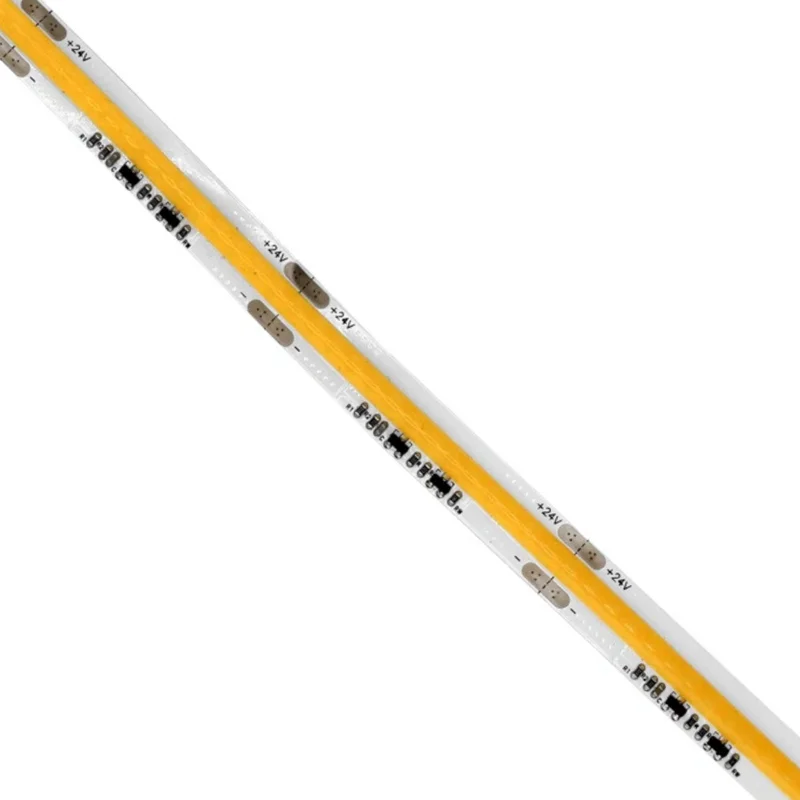

The RAB ARCTAPE TIC series delivers continuous, non-pixelated illumination with advanced COB (Chip on Board) technology. Available in three static white color temperatures (2700K, 3000K, 4000K) and a warm-to-dim option (3000K-1800K), this 32-foot LED tape light combines energy efficiency with professional-grade performance for residential, hospitality, and commercial applications.

Key Features

• COB (Chip on Board) Design: Produces a continuous band of flawless light output with no pixelated hot spots, even without a lens
• Multiple Color Options: Choose from 2700K warm white, 3000K soft white, 4000K cool white, or warm-to-dim (3000K-1800K)
• High Efficacy: Up to 95 lm/W efficiency with output ranging from 188-238 lm/ft depending on color temperature
• Superior Color Rendering: 90 CRI with R9 value greater than 50 for accurate color representation
• Dimmable Performance: PWM dimming signal, dimmable down to 0.1% with compatible LED driver (sold separately)
• Field-Cuttable: Can be cut every 1.97 inches for custom-fit installations with a maximum run of 32 feet
• Easy Installation: Pre-attached 3M double-sided tape for simple mounting to most surfaces

Specifications

• Light Output: 188-238 lumens per foot (±10%) depending on color temperature
• Input Voltage: 24V DC (requires constant voltage driver)
• Power Consumption: 2.5 W/ft
• Color Temperature Options: 2700K, 3000K, 4000K static white, or 1800K-3000K warm-to-dim
• Color Rendering Index: 90 CRI
• Beam Angle: 150°
• Rated Life: 50,000 hours
• Environment Rating: IP20 – Suitable for use indoors in dry and damp environments
• Compliance: UL Listed, Title 24 Compliant, FCC Part 15
• Warranty: 5-year limited warranty

Applications

• Under-cabinet lighting in kitchens and workspaces
• Cove and architectural accent lighting
• Display case and retail merchandising illumination
• Hospitality environments including hotels, restaurants, and bars
• Residential living spaces, bedrooms, and entertainment areas
• Task lighting for offices and commercial interiors
• Decorative and ambient lighting installations

Installation & Compatibility

Highly flexible with pre-attached 3M adhesive backing for professional-grade installation. Field-cuttable every 1.97 inches allows precise length customization. Can be linked with connectors (sold separately).

Compatible Drivers: TID-60 (Indoor 60W Driver), TID-96 (Indoor 96W Driver), TOD-96 (Outdoor 96W Driver)

Field Wiring Accessories: TJ2 (2-pin indoor connector kits), TJ2/DW (2-pin indoor connector kits for warm-to-dim)

Mounting Accessories: TAP12 (12mm wide aluminum channel kits)
