Programmable Constant Current LED Driver, 20W, 200-730mA, 0-10V Dimming, 120-277V

Description

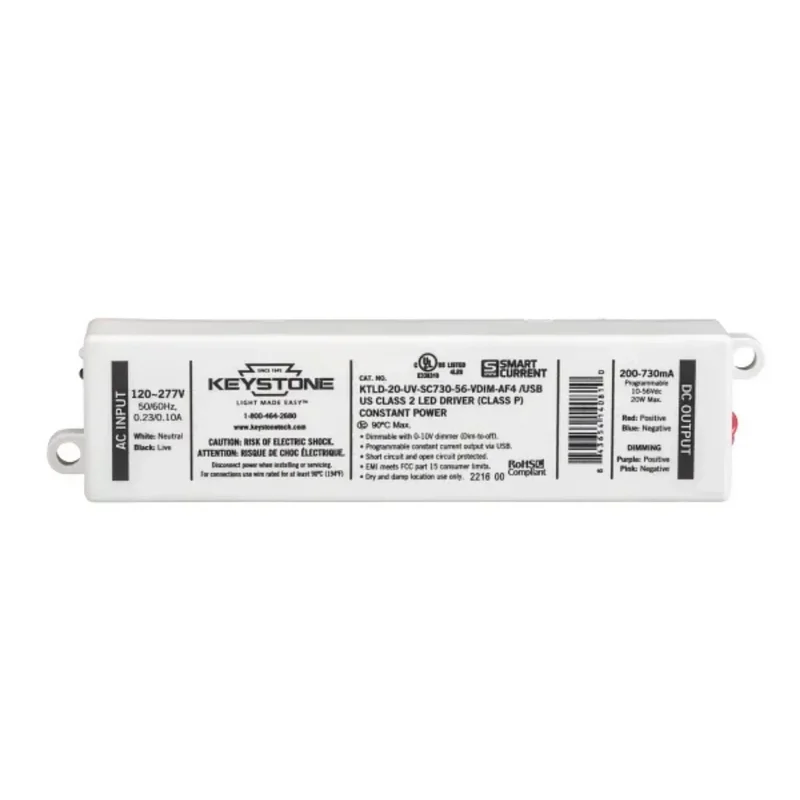

Keystone Technologies 20W Driver — 10-56V DC

The Keystone Technologies KTLD-20-UV-SC730-56-VDIM-AF4-USB is a 20W LED Driver with an input voltage range of 120-277V and an output voltage of 10-56V DC. This Constant Current driver supports 0-10V dimming down to 1% and is designed for indoor use. It features a bare module enclosure.

Key Features

• Power: 20W
• Input Voltage: 120-277V
• Output Voltage: 10-56V DC
• Output Current: 200-730mA
• Dimming: 0-10V
• Dimensions: 5.53 in. L x 1.30 in. W x 0.83 in. H
• Enclosure Type: Bare module
• Class 2: Yes
• Certifications: UL, CE, FCC

Physical Design & Installation

The driver features a compact design with a bare module enclosure, making it suitable for integration into various lighting fixtures.

Dimming & Controls

Compatible with 0-10V dimming systems, this driver allows for precise control of lighting levels, with a minimum dimming level as low as 1%.

Performance & Build

Equipped with over-voltage, over-current, short circuit, and over-temperature protection, this driver ensures reliable performance and longevity.

Typical Applications

• Commercial lighting
• Office lighting
• Retail lighting
• Architectural lighting
