Description

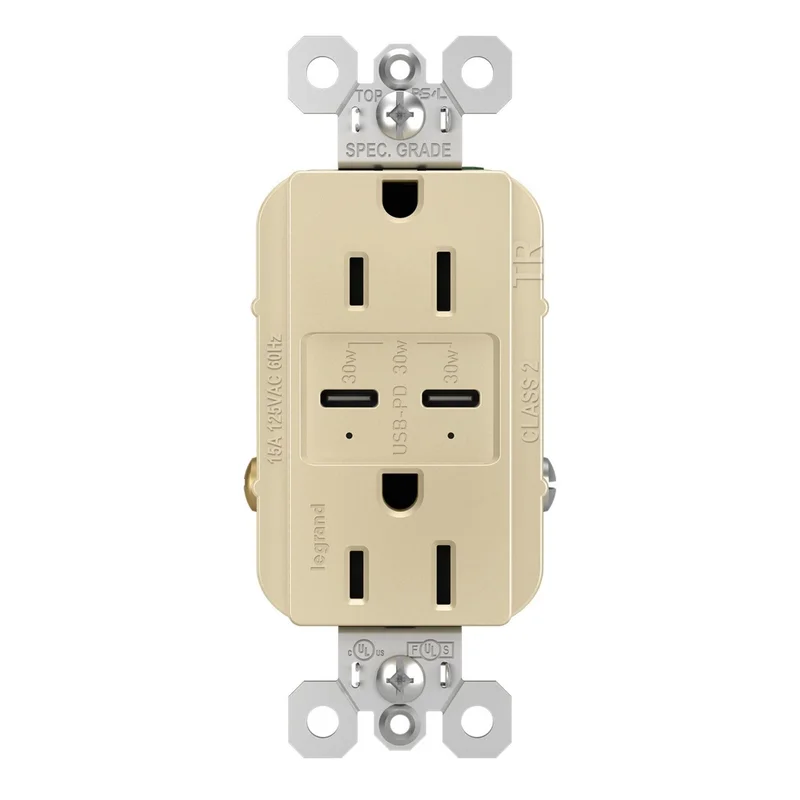

Legrand radiant USB Type C Duplex Receptacle — Ivory & Tamper-Resistant
The Legrand R26USBPDI in Ivory is a USB Type C Duplex Receptacle designed for modern charging needs. This outlet supports 15A and features two USB Type-C ports with 30W Power Delivery for fast charging. It is Tamper-Resistant with a patented shutter system to enhance safety.
Key Features
- Voltage: Operates at 15V, 5V, and 9V for versatile charging options.
- Amperage: Rated for 15A to support standard electrical loads.
- NEMA Configuration: NEMA 5-15R for compatibility with standard plugs.
- Tamper-Resistant: Yes, with patented shutter system for safety.
- USB Type-C Ports: Two ports with 30W Power Delivery for fast charging.
- Indicator Light: LED shows charging status with yellow and green indicators.
- Installation: Easy replacement with scalloped cover design and side-wire terminal screws.
- Dimensions: 1.69 in. width, 4.18 in. height, 1.35 in. depth.
- Certifications: cULus Listed, RoHS Compliant.
- Warranty: Limited Lifetime Warranty for peace of mind.
Construction & Interface
This outlet features a decorator-style interface with a satin finish in Ivory. It is made for use with screwless wall plates from the radiant Collection, which are sold separately.
Power & USB Charging
The R26USBPDI offers advanced Power Delivery through its USB Type-C ports, providing fast and efficient charging for compatible devices. The tamper-resistant design ensures safety with its patented shutter system.
Wiring & Installation
Designed for easy installation, this outlet supports back and side wiring with internal pressure plates and screw terminals. It accommodates #14 to #10 AWG wire and features a robust mounting strap for secure installation.
