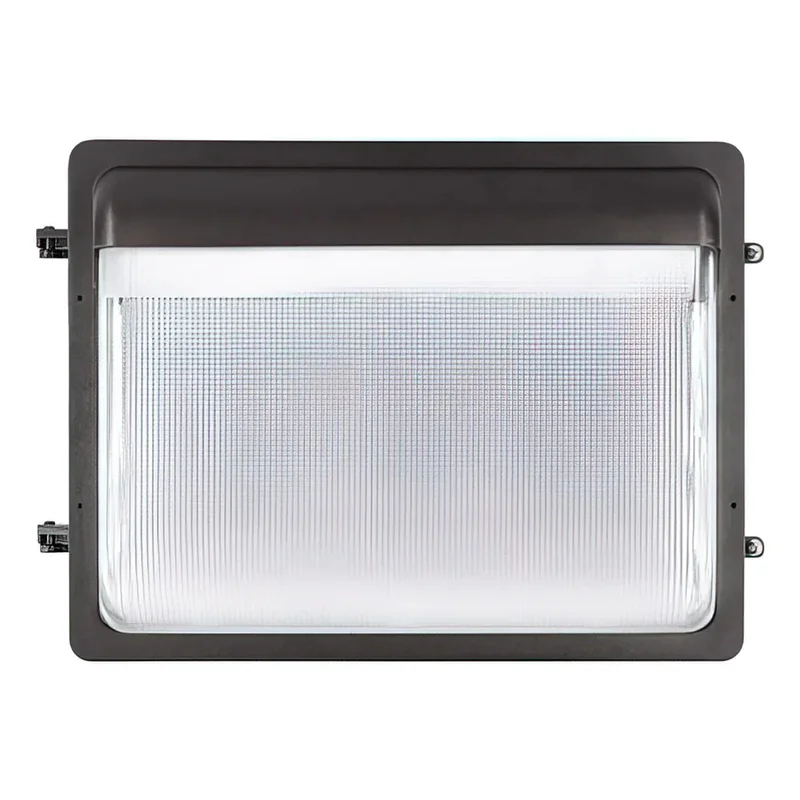

LEDVANCE Sylvania Non-Cutoff LED Wall Pack 8A, 3000K/4000K/5000K, 120-347V, Photocell, Bronze

Description

LEDVANCE Sylvania Non-Cutoff LED Wall Pack 8A — 20-120W Dual Selectable, 120-347V, Bronze

The LEDVANCE Sylvania Non-Cutoff Wall Pack 8A is a slim, high-efficiency dual selectable LED wall pack engineered to modernize commercial and industrial building exteriors. Available in three wattage tiers — 20-40W (63655), 40-80W (63656), and 80-120W with emergency battery backup (63832) — all models deliver up to 140 LPW efficacy, selectable 3000K/4000K/5000K CCT, and operate on a universal 120-347V input. An integrated dusk-to-dawn photocell and 0-10V dimming driver are standard across the entire family. The 80-120W model adds a built-in 90-minute emergency battery backup for life safety and NEC/IBC egress compliance.

LEDVANCE Sylvania Non-Cutoff Wall Pack 8A Features

• Emergency Battery Backup (80-120W model): Integrated 90-minute battery provides continuous egress illumination during power failures, meeting NEC and IBC life safety requirements.
• Dual Selectability: Field-adjustable wattage and CCT switches allow on-site customization without additional SKUs — select wattage and color temperature during installation.
• High Output: Delivers 2,800 to 16,800 lumens across the wattage range at up to 140 LPW efficacy with >80 CRI.
• DLC 5.1 Premium Listed: Qualifies for utility rebates and energy savings programs (standard models; emergency model is cULus Listed).
• Integrated Photocell: Built-in dusk-to-dawn sensor for automated, hands-free energy management.
• 0-10V Dimming: Standard Class 2 driver with full dimming interface across all models.
• Universal Voltage: 120-347V input accommodates standard commercial and higher-voltage industrial systems.
• Non-Cutoff Distribution: Wide forward-throw optics deliver maximum perimeter visibility — ideal where Dark Sky compliance is not required.
• Slim Profile: Low-profile die-cast aluminum housing blends into building facades and optimizes freight and wall space.
• IP65 Wet Location Rated: Sealed against dust and water ingress; operates from -40°F to 122°F.
• 100,000-Hour Lifespan: L70-rated LED life with a 5-year warranty minimizes long-term maintenance costs.

Dual Selectable Technology

All models feature field-accessible wattage and CCT selector switches, allowing installers to dial in the exact output and color temperature required on-site — no tools, no rewiring.

Wattage Options & Lumen Output:

• 40W (63655): 5,600 lumens — replaces 100-150W HID fixtures
• 30W (63655): 4,200 lumens
• 20W (63655): 2,800 lumens
• 80W (63656): 11,200 lumens — replaces 175-250W HID fixtures
• 60W (63656): 8,400 lumens
• 40W (63656): 5,600 lumens
• 120W (63832 w/ Emergency): 16,800 lumens — replaces 400W HID fixtures
• 100W (63832 w/ Emergency): 14,000 lumens
• 80W (63832 w/ Emergency): 11,200 lumens

CCT Options: All models offer 3000K (warm white), 4000K (neutral white), and 5000K (daylight) — selectable on-site to match existing site lighting or architectural requirements.

Emergency Battery Backup

The 80-120W model (63832) includes an integrated emergency battery backup system that activates automatically upon loss of primary power, providing a minimum of 90 minutes of continuous egress path illumination. This feature ensures compliance with NEC and IBC life safety codes for exterior egress lighting without requiring a separate emergency unit.

Typical Applications

• Commercial and educational building perimeters
• Industrial and large commercial facades
• Walkways, entryways, and outdoor corridors
• Parking structure walls and stairwells requiring egress lighting
• Security and safety lighting
• General area lighting where wide outward distribution is preferred

Performance & Light Output

All three models deliver up to 140 LPW efficacy with >80 CRI and a 5000K/4000K/3000K selectable color temperature. The non-cutoff optics cast a wide, bright forward-throw pattern ideal for large perimeters requiring maximum visibility. The 100,000-hour L70 lifespan dramatically reduces re-lamping and maintenance costs versus legacy 100-400W HID wall packs.

Electrical & Controls

Each model is powered by a constant current Class 2 driver operating on 120-347V AC — compatible with standard commercial and higher-voltage industrial systems up to 347V. All models include 0-10V dimming and an integrated dusk-to-dawn photocell for automated energy management. The 80-120W emergency model adds an integrated battery driver that activates seamlessly upon power loss.

Construction & Durability

The precision die-cast aluminum housing is finished in a resilient bronze powder coat and sealed with a silicone gasket for full IP65 protection against dust and water ingress. The slim, low-profile design blends into building facades and operates reliably in extreme ambient temperatures from -40°F to 122°F (-40°C to 50°C).

Installation & Mounting

Designed for straightforward surface wall mounting, the slim profile minimizes wall protrusion and simplifies installation. Field-accessible wattage and CCT selector switches are located inside the fixture for easy on-site adjustment during commissioning. All models include an integrated photocell — no external sensor required.

What’s Included

• LEDVANCE Sylvania Non-Cutoff LED Wall Pack 8A — Bronze (wattage tier selected above)
• Integrated Photocell
• Integrated Emergency Battery Backup (80-120W model only)
