GM Lighting LTRS24V3W18D LTR-S Spec Series DTW Dim to Warm LED Tape | 24V | 2700K & 3000K

Description

GM Lighting LTRS24V3W18D LTR-S Spec Series DTW Dim to Warm LED Tape — 24V | 2700K & 3000K

The GM Lighting LTRS24V3W18D is a premium Dim to Warm (DTW) LED tape from the LTR-S Specification Series, designed for use with PWM output drivers. At full output, bright, high CCT light fills the space. When dimming, CCT automatically warms as the light dims — producing the cozy feel of candlelight. DTW tape mimics incandescent dimming and is designed to perform well with many PWM output drivers. Available in two CCT ranges: 1800K–2700K and 1800K–3000K.

Key Features

• Voltage: 24VDC operation for consistent, efficient performance.
• Wattage: 3 watts per foot.
• Lumens: 310 lumens/ft at 2700K | 347 lumens/ft at 3000K.
• CRI: 90+ CRI | R9 > 50 for accurate, vibrant color rendering.
• CCT Range: 1800K–2700K (LTRS24V3W18D27K16) or 1800K–3000K (LTRS24V3W18D30K16) — shifts automatically as it dims.
• Max Run: 32′-8” on a single lead to prevent voltage drop.
• Cuttable: Field cuttable every 2.17” (55mm) — 2×7 LEDs per cut section.
• PCB Width: 0.39” (10mm) for compatibility with standard aluminum channels.
• Reel Length: 16′-4” (5M) per reel.
• Beam Angle: 120° wide beam angle for broad light distribution.
• Dimming: Compatible with PWM output drivers only. Not compatible with SwitchLD, LD-EDM, PSD, or LD-MD series drivers.
• Adhesive: 3M adhesive back for secure, tool-free mounting.
• Location: Dry location rated.
• Operating Temp: -4°F to 122°F.
• Certifications: ETL listed | Class 2.
• Warranty: 5-year warranty when paired with a GM Lighting power supply.

Core Design & Construction

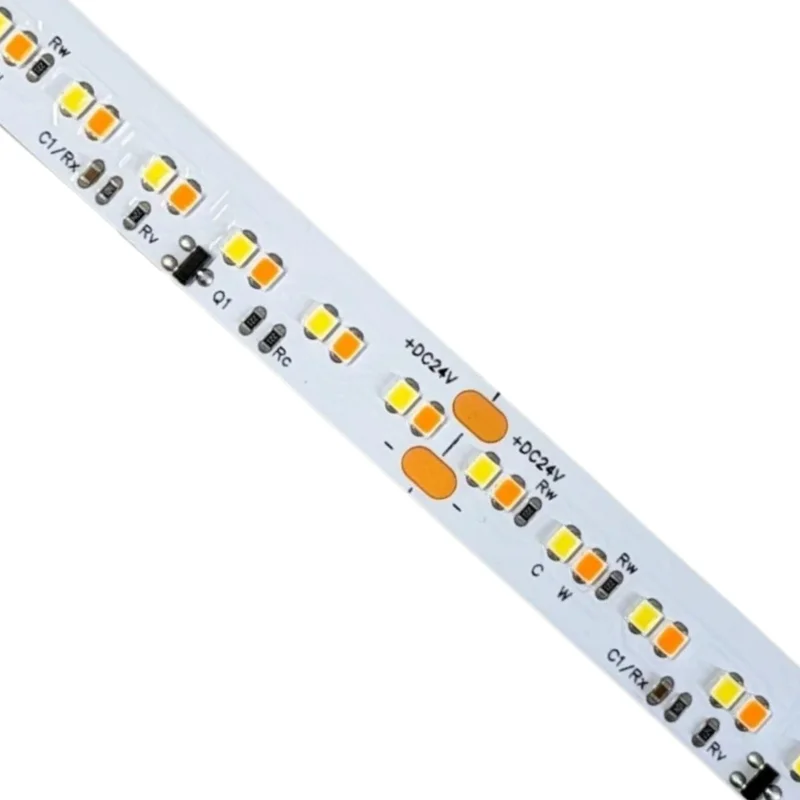

The LTRS24V3W18D features a 10mm wide PCB with premium dual LED CCT diode pairs that shift from cool to warm as the tape is dimmed. The 3M adhesive back ensures secure mounting in aluminum channels or direct surface applications. Includes a 60” lead affixed to the tape and (3) ESTW-60 Sure-Tite connectors for easy field connections. Custom lengths available — consult factory.

LED Illumination & Performance

With 90+ CRI and R9 > 50, the LTRS24V3W18D delivers vibrant, accurate color rendering across its full dimming range. The Dim to Warm function mimics incandescent dimming — at full output, bright high-CCT light fills the space; as it dims, CCT automatically warms to produce a cozy, candlelight ambiance. Kelvin temperature (color) ±100K.

Power, Wiring & Installation

Requires a 24VDC PWM output driver. Compatible recommended drivers include the LD-XD-UNV LineDrive Electronic Multi-Dimmable Power Supply (20W–300W) and the LD-EDWP-UNV LineDrive Electronic-Dimmable Power Supply IP66 (30W, 60W, 96W). Compatible controllers include HC-RF-UNV-5CH, CM-RF-UNV-5CH, RPT-UNV-5CH, and SHWC LUXcontrol Smart WiFi Controller. Field cuttable every 2.17” — maximum run of 32′-8” per lead. Drivers and controls sold separately.

Where This Tape Works Best

• Under cabinet lighting
• Cove & tray ceiling lighting
• Accent & hospitality lighting
• Display case & retail lighting
• Residential & commercial interior applications

What’s Included

• 16′-4” (5M) reel of DTW LED tape
• (3) ESTW-60 Sure-Tite connectors
• 60” lead affixed to tape
