Description

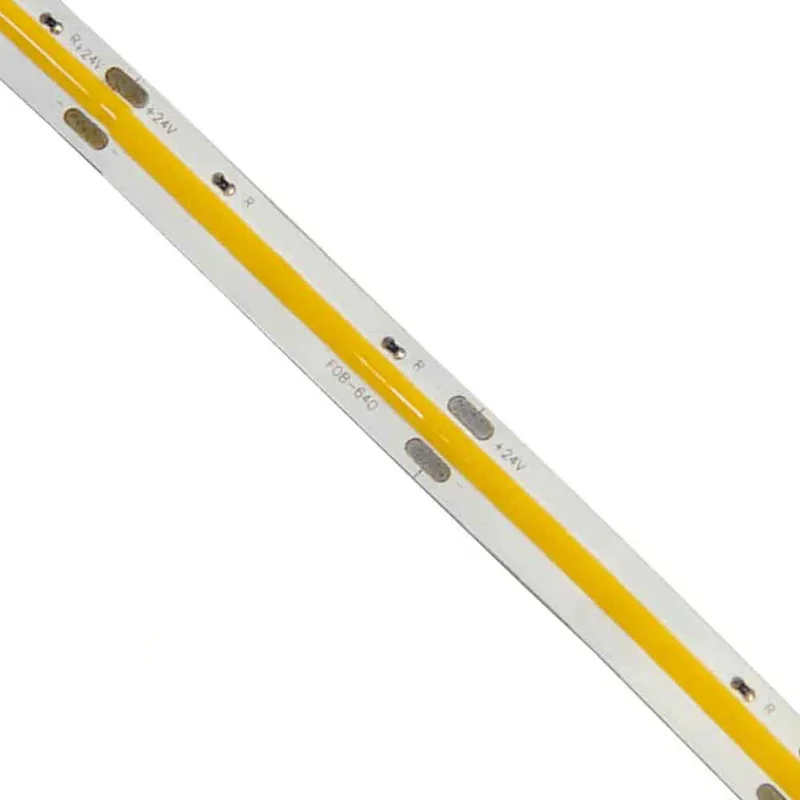

Premium COB LED tape light series delivering seamless, dotless illumination for professional lighting installations. The LTR-S Series features tightly spaced diodes encapsulated into a single phosphor strip, providing a continuous linear light display with no LED pixelation—ideal for under cabinet, cove, accent, and architectural lighting applications.
Key Features
- Dotless COB Technology: Chip-on-board design eliminates visible LED spots for seamless linear illumination
- Static White Color Temperatures: Available in 2700K warm white, 3000K soft white, 3500K neutral white, and 4000K cool white
- High-Efficiency Output: 255-285 lumens per foot depending on color temperature
- Superior Color Rendering: 95+ CRI for accurate, vibrant color reproduction across all models
- Flexible Installation: 156 LEDs per foot, cuttable every 2″ for precise customization
- Wide Viewing Angle: 180° beam spread for uniform light distribution
- Full Dimming Control: Compatible with GM’s LUXcontrol® App and standard controllers
- UL Listed & Class 2 Rated: Title 24 compliant when used with specific drivers
- Professional Grade: 3M adhesive backing, includes Sure-Tite connectors
- Extended Warranty: 5-year coverage when paired with GM power supply
Technical Specifications
- Series: LTR-S-COB-24V-3.0W (Static White)
- Length: 16′-4″ reel includes 48″ lead affixed to tape and (3) ESTW-60 Sure-Tite connectors
- Power: 24VDC, 3 watts per foot
- CRI: 95+
- LED Density: 156 LEDs per foot
- Viewing Angle: 180°
- Operating Temperature: -4°F to 122°F
- Maximum Run Length: 32′-8″ on a given load
- Cut Interval: Every 2″
- Mounting: 3M adhesive back, dry location rated
- Certifications: UL Listed, Closet Rated (NEC code NFF470 410.16), Title 24 compliant with specific drivers
Available Models
- LTR-S-COB-24V-3.0W-27K-16: 2700K warm white, 255 lm/ft
- LTR-S-COB-24V-3.0W-30K-16: 3000K soft white, 265 lm/ft
- LTR-S-COB-24V-3.0W-35K-16: 3500K neutral white, 275 lm/ft
- LTR-S-COB-24V-3.0W-40K-16: 4000K cool white, 285 lm/ft
Applications
- Under cabinet and task lighting in kitchens and workspaces
- Cove and indirect architectural lighting
- Display case and retail merchandising illumination
- Accent lighting for shelving, niches, and alcoves
- Hospitality and residential ambient lighting
- Closet and storage space lighting (NEC compliant)
- Architectural feature lighting and linear applications
Note: Requires compatible 24V LED driver (sold separately). Consult factory for Title 24 compliance and driver pairing recommendations. Remote control available via GM’s LUXcontrol® App and compatible controllers.
