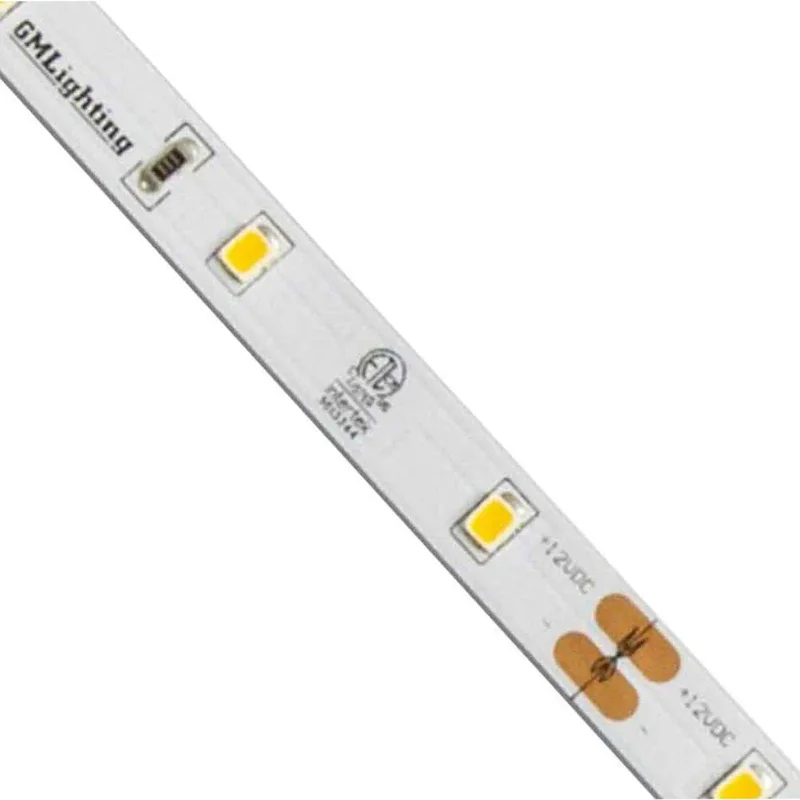

Economy Series LED Strip Light – Professional Performance at Value Pricing
The GM Lighting LTR-E Econo Series delivers reliable, energy-efficient linear lighting for residential and commercial applications. Available in both 12V and 24V configurations with multiple color temperatures and reel sizes, this versatile LED tape light provides flexible installation options for under cabinet lighting, cove lighting, accent lighting, and architectural details.
Available Configurations
- Voltage Options: 12VDC or 24VDC low-voltage operation
- Reel Sizes: 16-foot or 100-foot reels for any project scale
- Color Temperatures: 2700K (Warm White), 3000K (Soft White), 3500K (Neutral White), 4000K (Cool White)
- Output Range: 127-149 lumens per foot depending on color temperature
What’s Included
- 1 reel of LTR-E LED strip light (size and color temperature as selected)
- 48″ lead wire affixed to tape for easy connection
- Pre-applied 3M adhesive backing for easy installation
Note: LED driver/power supply and Sure-Tite connectors sold separately. Compatible 12VDC or 24VDC LED driver required for operation (voltage must match your selection).
Key Features
- High-Efficiency Output: Only 1.5 watts per foot across all configurations for optimal energy savings
- Versatile Color Options: Four color temperatures from warm to cool white to match any design aesthetic
- Good Color Rendering: 80+ CRI ensures quality color representation
- Flexible Voltage Options: Choose 12V for standard runs or 24V for longer installations with reduced voltage drop
- Maximum Run Length: 32′-8″ per lead for extended coverage
- Dimmable Performance: Compatible with GM LUXcontrol app and controllers for precise brightness adjustment
- Professional Grade: ETL Listed and Class 2 rated for safety and reliability
- Field Cuttable: 12V cuts every 2 inches, 24V cuts every 4 inches for custom lengths
Technical Specifications
- Power Consumption: 1.5W per foot (all models)
- Input Voltage: 12VDC or 24VDC (select at checkout)
- LED Type: 2835 SMD
- LED Density: 60 LEDs per foot
- Lumen Output: 127-149 lm/ft (varies by color temperature)
- Beam Angle: 120°
- IP Rating: IP20 (indoor use)
- PCB Width: 0.31 inches (8mm)
- Adhesive Backing: 3M tape for easy installation
- Maximum Run Length: 32′-8″ per lead
- Cut Interval: Every 2 inches (12V) or 4 inches (24V)
- CRI: 80+
- Reel Sizes: 16′-4″ or 100′ (select at checkout)
Color Temperature Guide
- 2700K Warm White (127 lm/ft): Cozy, inviting ambiance ideal for residential and hospitality spaces
- 3000K Soft White (133 lm/ft): Balanced warmth and clarity for versatile applications
- 3500K Neutral White (134 lm/ft): Clean, modern illumination for contemporary designs
- 4000K Cool White (149 lm/ft): Bright, crisp light perfect for task and commercial applications
Applications
- Under cabinet and task lighting
- Cove and indirect lighting
- Display and retail accent lighting
- Architectural detail illumination
- Hospitality and residential projects
- Commercial installations requiring Title 24 compliance
- Large-scale projects (100ft reels)
- Extended run applications (24V option)
Choosing Your Configuration
12V vs 24V: Select 12V for standard residential installations with shorter runs. Choose 24V for commercial projects, longer run lengths, or installations requiring reduced voltage drop.
16ft vs 100ft: 16-foot reels are ideal for single-room projects and smaller installations. 100-foot reels provide cost savings and efficiency for large-scale, multi-room, or commercial projects.
Installation Notes
Requires compatible LED driver matching your selected voltage (12VDC or 24VDC, sold separately). Can be cut at designated cut marks every 2 inches (12V) or 4 inches (24V). Maximum run length is 32′-8″ per lead wire. Surface must be clean and dry for optimal adhesive performance. For dimming functionality, use compatible GM Lighting controllers.
ETL Listed | Class 2 Rated | 5-Year Warranty when paired with GM power supply | TITLE 24 Compliant
