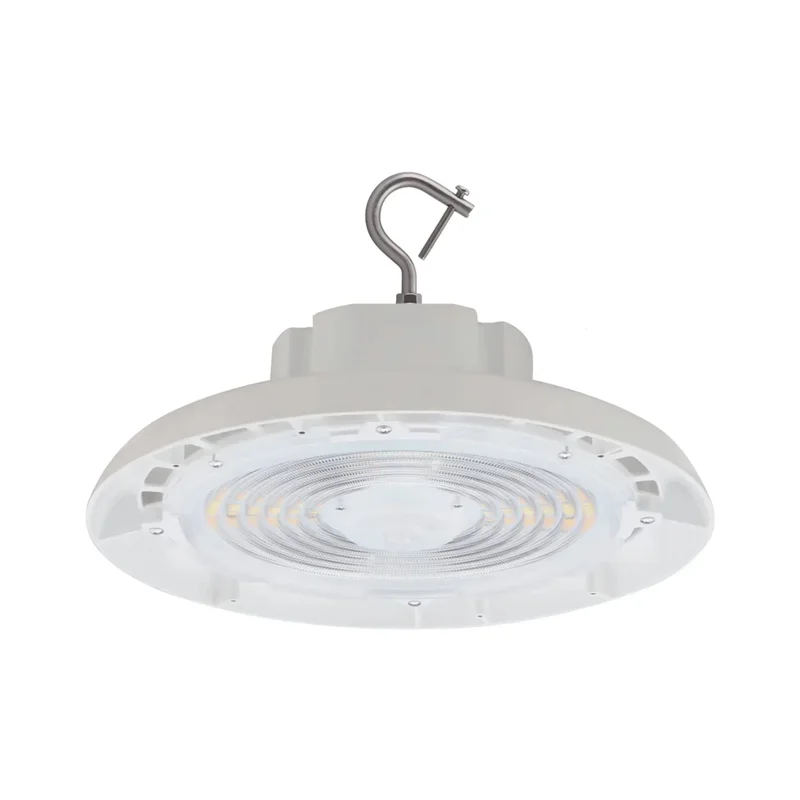

EIKO BAYE3 Round High Bay LED Light – Ultimate Flexibility for Commercial & Industrial Spaces
The EIKO BAYE3 Round High Bay series delivers exceptional performance and unmatched versatility for warehouses, manufacturing plants, distribution centers, retail stores, and gymnasiums. Engineered with PowerSet technology and FieldCCeT color tuning, this complete UFO high bay family adapts to any lighting requirement.
PowerSet Technology – Multiple Wattages in One Fixture
Choose the perfect light level at installation without ordering multiple fixture types. The BAYE3 series offers two PowerSet options:
- 150W Series: Field-selectable 100W, 130W, or 150W (up to 22,500 lumens)
- 240W Series: Field-selectable 180W, 200W, or 240W (up to 36,000 lumens)
FieldCCeT – Adjustable Color Temperature
Select your preferred color temperature in the field to match your environment: 3500K (warm white), 4000K (neutral white), or 5000K (cool white). No need to stock multiple fixtures for different applications.
Available Configurations
The BAYE3 series is available in multiple configurations to suit your facility:
- BAYE3-PS150-FCCT-U: 150W PowerSet, Black finish
- BAYE3-PS150-FCCT-U-WH: 150W PowerSet, White finish
- BAYE3-PS240-FCCT-U: 240W PowerSet, Black finish
- BAYE3-PS240-FCCT-U-WH: 240W PowerSet, White finish
Key Features
- High Efficacy: Up to 150 lm/W for maximum energy savings
- Superior Color Quality: CRI >80
- Wide Coverage: 90° beam angle for uniform light distribution
- Long Lifespan: 100,000 hours (L70) for minimal maintenance
- Voltage: 120-277V or 120-347V options
- Dimming: 0-10V dimming with dim-to-off capability
- Controls Ready: Screw-in receptacle for sensors or networked controls
Complete Installation Package
- Extended 10ft power and dimming cord included
- Hook included for easy mounting
- Impact-resistant polycarbonate lens
- Multiple mounting options: eyebolt (included), pipe adapter, hook, or yoke mount (optional)
- Pipe adapter connects directly to conduit via 3/4″ threaded pipe
Premium Certifications
- UL Certified for US & Canada
- DLC Premium Qualified – highest qualification for efficacy and lumen maintenance
- DesignLights Consortium® Premium Qualified
- IP65 Rated for dust-tight and water-resistant protection
- RoHS, FCC, ICES-005 Compliant
Durable Construction
- Matte black or white powder coated die-cast aluminum housing
- Impact-resistant polycarbonate lens
- Operating temperature: -40°F to 122°F (-40°C to 50°C)
- Power factor: >0.9
- THD: <20%
Ideal Applications
- Warehouses
- Manufacturing Plants
- Distribution Centers
- Grocery Stores
- Gymnasiums
- Indoor Recreational Facilities
- Cold Storage
- Big Box Retail
- Service Repair Centers
Why Choose BAYE3?
The BAYE3 series eliminates the complexity of specifying and stocking multiple fixture types. With PowerSet wattage selection and FieldCCeT color tuning, you can adapt to changing needs, reduce inventory, and simplify installation. The Controls Ready feature future-proofs your investment by allowing easy integration of sensors and networked controls without additional wiring.
Warranty
5 Year limited warranty available. Contact your EiKO sales rep for additional details.
Transform your facility with the EIKO BAYE3 Round High Bay – where performance, flexibility, and efficiency converge.
