Description
Magnitude Lighting E-Series 75W LED Driver — 24V DC
E75R24DC is a Magnitude Lighting LED Driver built for 75W Constant Voltage output at 24V DC from a 120VAC supply. It is forward-phase (TRIAC) dimmable down to 1% and is listed as Class 2. The driver uses a compact aluminum housing with flying leads and is not an Integrated Junction Box design.
Key Features
- Power: 75W maximum load
- Input Voltage: 120VAC ±10%
- Input Frequency: 50/60Hz
- Output: 24.0 VDC constant voltage
- Dimming: Forward-phase (TRIAC) dimmable to 1%
- Minimum Load: 8W required for smooth dimming
- Dimensions: 4.92 in. L x 2.20 in. W x 0.79 in. H
- Enclosure Type: Aluminum case with flying leads; no junction box
- IP Rating: IP67
- Certifications: UL8750 Recognized; UL 879; Class 2
Physical Design & Installation

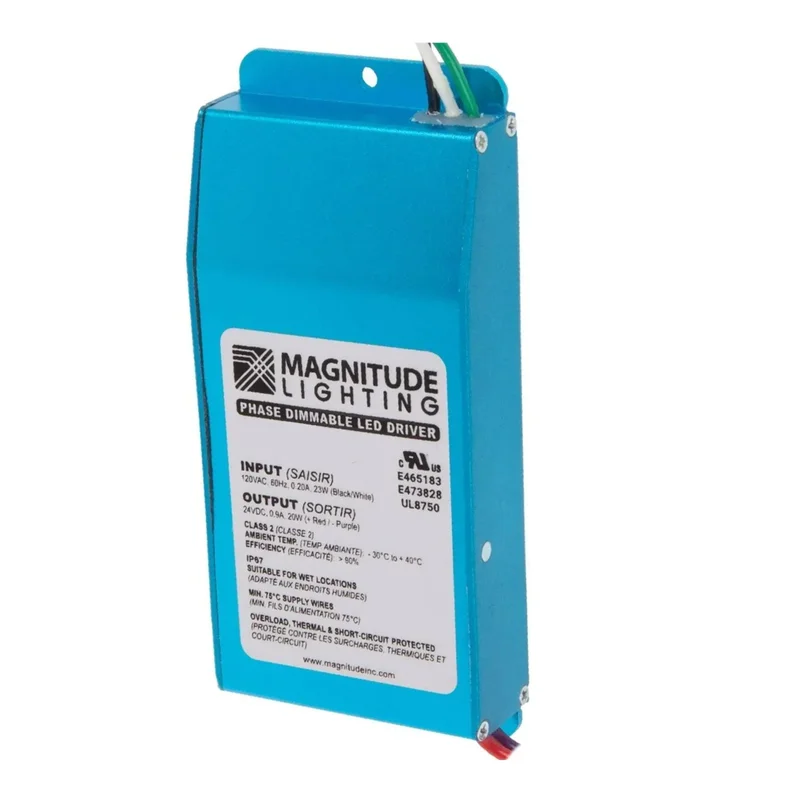

Compact anodized aluminum housing designed for easy concealment. This model uses flying leads (primary and secondary) and does not include an integrated wiring compartment or knockouts. Mounting is via flange with one hole and one half-hole.
Dimming & Controls
Supports forward-phase (TRIAC) dimming with compatible dimmers and can dim down to 1%. For smooth dimming performance, maintain an 8W minimum load on the driver output. Output is constant voltage 24V DC for 24V LED loads.
Performance & Build
High-efficiency design (>90% specified for 24VDC models) helps reduce operating temperature. Protection includes auto-reset short circuit and over-voltage protection. Rated Class 2 and built to an IP67 enclosure rating.
Typical Applications
- 24V LED tape light and linear LED runs
- Wet-location outdoor accent and landscape lighting systems
- Sign and channel letter lighting (UL 879 applications)
- Architectural cove and undercabinet installations
