American Lighting RGBTW 4-Zone DMX Wall Controller — Touch-Sensitive, In-Wall, 12-24V DC

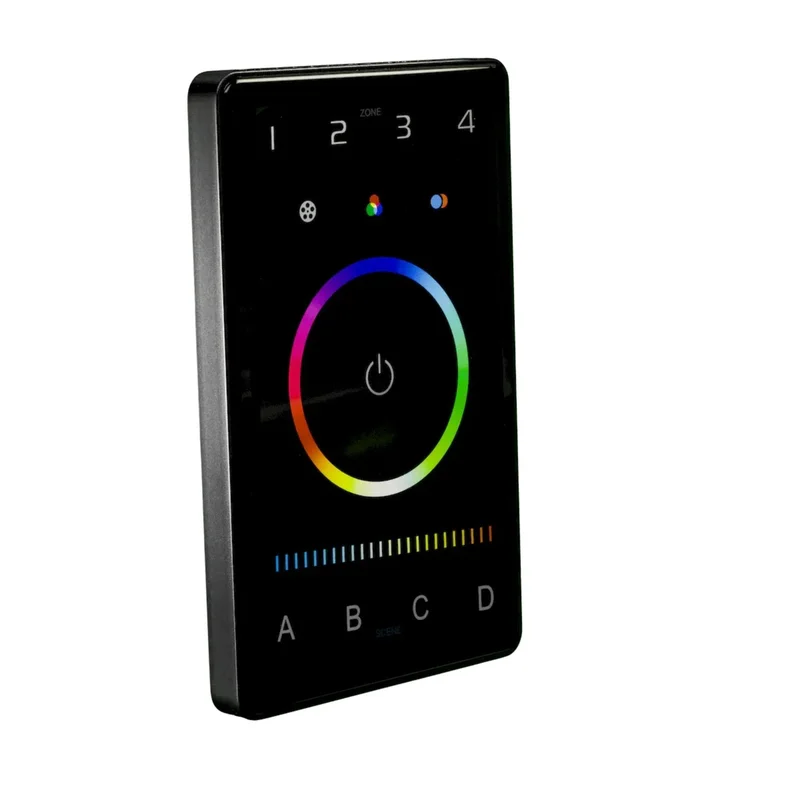

The American Lighting CTRLW-DMXB-RGBTW-4Z is a sleek, touch-sensitive in-wall DMX wall controller designed for RGBTW tape light applications. Mastermind a dynamic lighting scheme with RGB + Tunable CCT shortcuts for color mixing and brightness control across four independent zones. Features a 16-mode auto-play function, touch color circle, touch slider bar, and four savable scenes per zone. Fits standard single-gang junction boxes for convenient installation and full functionality.
Key Features
- Touch-Sensitive Operation: Touch color circle with color tone shortcuts, touch slider bar for full-range dimming (1–100%), and zone keys for independent zone control.
- 4-Zone Control: Controls up to 4 independent zones, each with 4 savable scenes (A, B, C, D) — 16 total savable scenes.
- 16 Auto-Play Modes: Built-in auto-play function with 16 selectable dynamic effects including color jumping, color strobe, gradient effects, and full color gradient.
- RGBTW Compatibility: Supports RGB, RGBW, RGBTW, and TW (tunable white) tape light configurations via a 5-channel DMX decoder (required, sold separately).
- Color Tone Shortcuts: Quick-access buttons for Cool White, Neutral White, and Warm White tunable white presets.
- DMX 512 Signal Output: Outputs DMX 512 signal for use with compatible DMX decoders.
- Standard Single-Gang Fit: Fits standard single-gang junction boxes for easy retrofit or new construction installation.
- Not Compatible with Pixel Products: Designed for non-pixel (static zone) tape light applications only.
- Input Voltage: 12-24V DC, 200mA power consumption.
- Operating Temperature: -20°C to 55°C (-4°F to 131°F).
- Certifications: UL Listed, FCC Compliant, RoHS Compliant. Dry location rated.
Key Functions — RGBTW Mode
- Zone Keys (1–4): Short press to turn ON / select or deselect the zone; long press to turn OFF.
- RGB Button: Short press to turn ON/OFF RGB; long press to adjust RGB brightness.
- TW Button: Short press to turn ON/OFF TW; long press to adjust brightness of TW.
- Power Button: Short press for All ON/OFF.
- Auto-Play Button: Short press to play mode; long press to adjust speed. 16 modes (press to switch): 3 color jumping, 7 color jumping, white strobe, 7 color strobe, red green gradient, red blue gradient, green blue gradient, red yellow gradient, green yellow gradient, blue cyan gradient, blue purple gradient, red purple gradient, blue white gradient, yellow purple cyan gradient, 3 color gradient, full color gradient.
- Touch Color Circle (RGB): Touch to select RGB color.
- Touch Slider Bar (TW): Touch to adjust tunable white color temperature.
- Scene Keys (A, B, C, D): Short press to execute scene.
Recommended Decoders
- REC-DMX-5A-4Z — DMX 4-Channel Decoder, 12-24V DC, 4×5A, 4×(60–180W), dry location
- REC-DMX-RJ45-5CH — DMX 5-Channel Decoder, 12-24V DC, 5×8A, 5×(96–192W), dry location
- REC-DMX-RJ45-3X4CH — DMX 3-Port 4-Channel Decoder, 12-24V DC, 12×(3×4)×5A, 12×(60–120W), dry location
- DEC-DMX-IP67 — DMX 4-Channel IP67 Decoder, 12-24V DC, 4×5A, 4×(60–180W), wet location
Control can be powered from the secondary side of a 12-24V DC driver being used to power the decoder.
Recommended Transceiver
- CTRL-WDMX-TRNRCV — Wireless DMX Transceiver, 5-24V DC, FCC Compliant, RoHS Compliant, dry location
What’s Included
- (1) RGBTW 4-Zone DMX Wall Controller
Requires 12-24V DC power supply and compatible DMX decoder — sold separately.
